A robust pipeline for statistical metagenomic data analysis

MISO Master Project | Metagenomics

Ines BAKLI, Alden SNEATH, Paul LEMONNIER

Introduction

Metagenomic Challenge

  • Goal: Building a reproducible pipeline ➔ reliable conclusions on microbial interaction from metagenomic data.

  • Data : Bacteria population abundance from patients’ gut microbiome with differing diseases

  • Problems from microbiome sequencing :

    • High dimensionnality
    • Sparsity
    • Compositionality

Dataset Structure

All analyses were performed using the phyloseq framework, integrating three essential matrices into a single metagenomics object:

Counts/proportions of each taxon across samples.

Sample_1880 Sample_1881 Sample_1882 Sample_1883 Sample_1884
Prevotella_copri 0.03 3.80 0.00 26.83 30.02
Faecalibacterium_prausnitzii 38.39 5.00 7.79 2.02 15.27
Bacteroides_stercoris 0.00 0.00 1.19 2.31 0.01
Subdoligranulum_unclassified 3.10 9.31 11.51 4.03 1.83
Bacteroides_vulgatus 0.23 2.38 0.65 0.42 0.22

Clinical context and patient variables used for group comparisons

age gender disease country
Sample_1880 34 female ibd_ulcerative_colitis spain
Sample_2485 45 female cirrhosis china
Sample_3063 53 female t2d china
Sample_3480 67 male cancer france

Biological identification for each OTU.

Kingdom Phylum Class Order Family
Actinomyces_graevenitzii Bacteria Actinobacteria Actinobacteria Actinomycetales Actinomycetaceae
Bacteroides_barnesiae Bacteria Bacteroidetes Bacteroidia Bacteroidales Bacteroidaceae
Granulicatella_unclassified Bacteria Firmicutes Bacilli Lactobacillales Carnobacteriaceae
Fusobacterium_gonidiaformans Bacteria Fusobacteria Fusobacteriia Fusobacteriales Fusobacteriaceae
Burkholderiales_bacterium_1_1_47 Bacteria Proteobacteria Betaproteobacteria Burkholderiales Burkholderiales_noname

Data preparation

1. Quality control

  • Missing values : avoid analysis bias

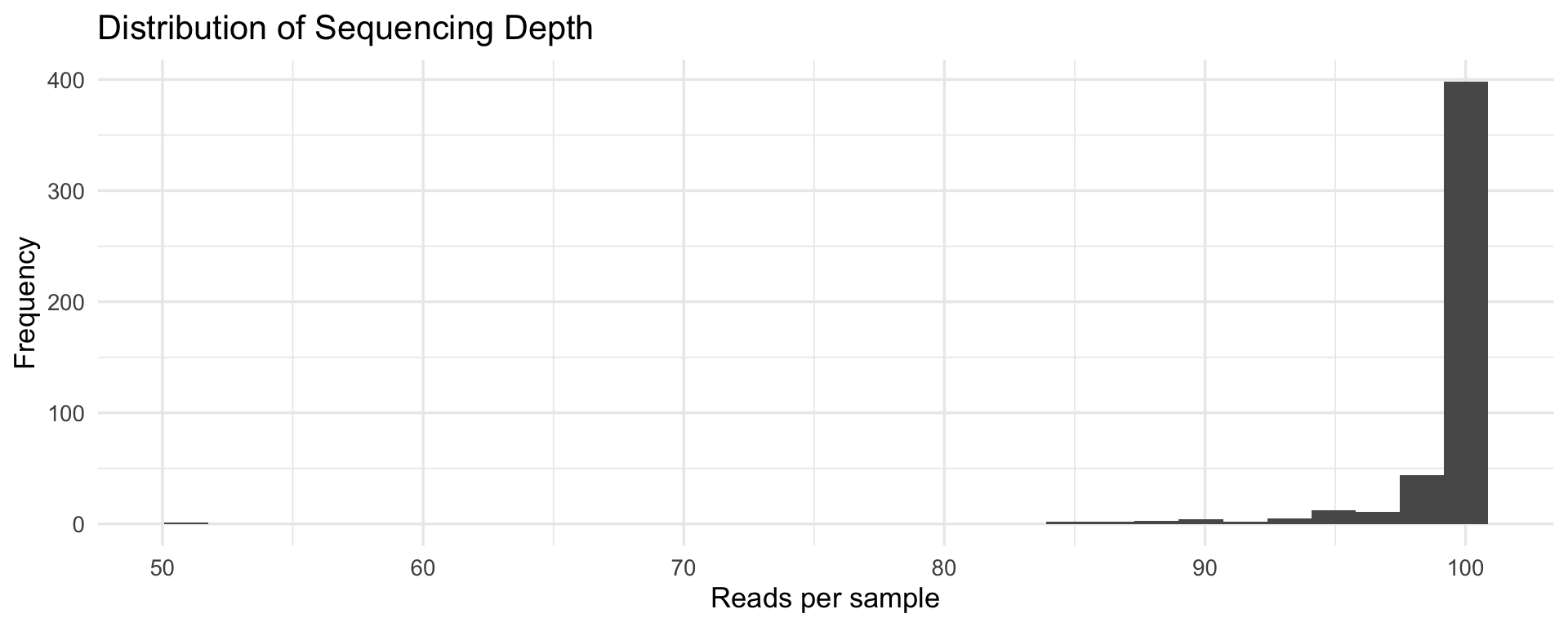

  • Distribution of sequencing depth = nb of reads/sample

Allows the identifaction of outliers + normalisation

2. Data Overview

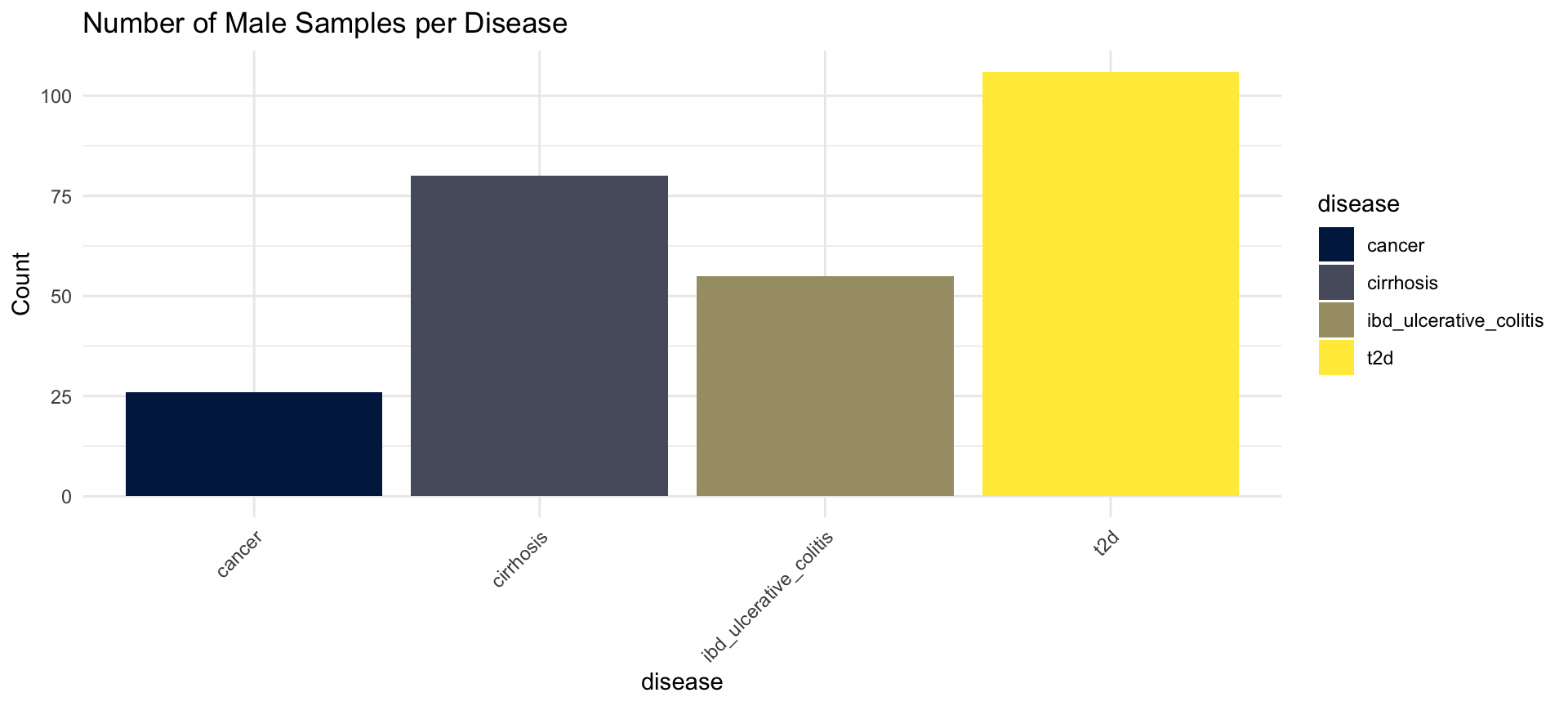

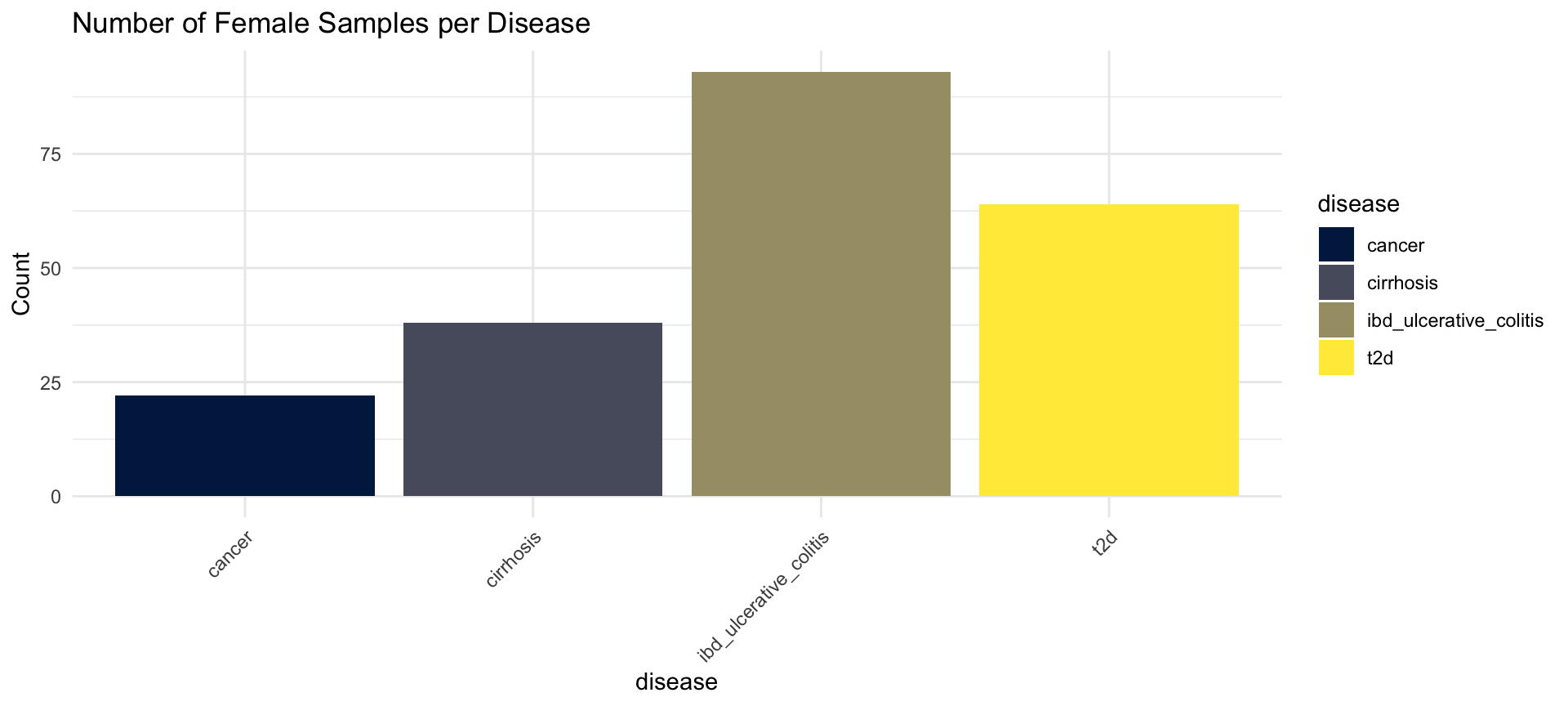

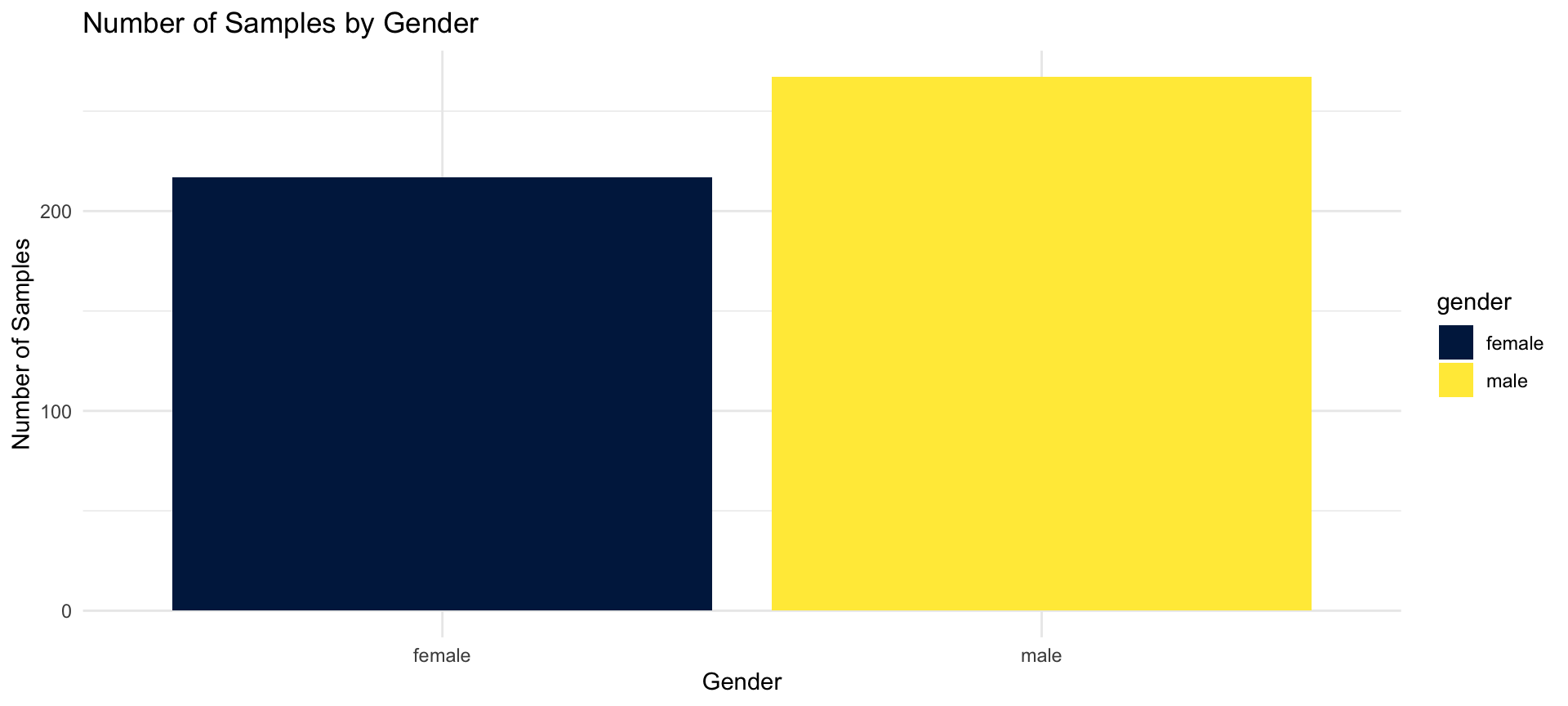

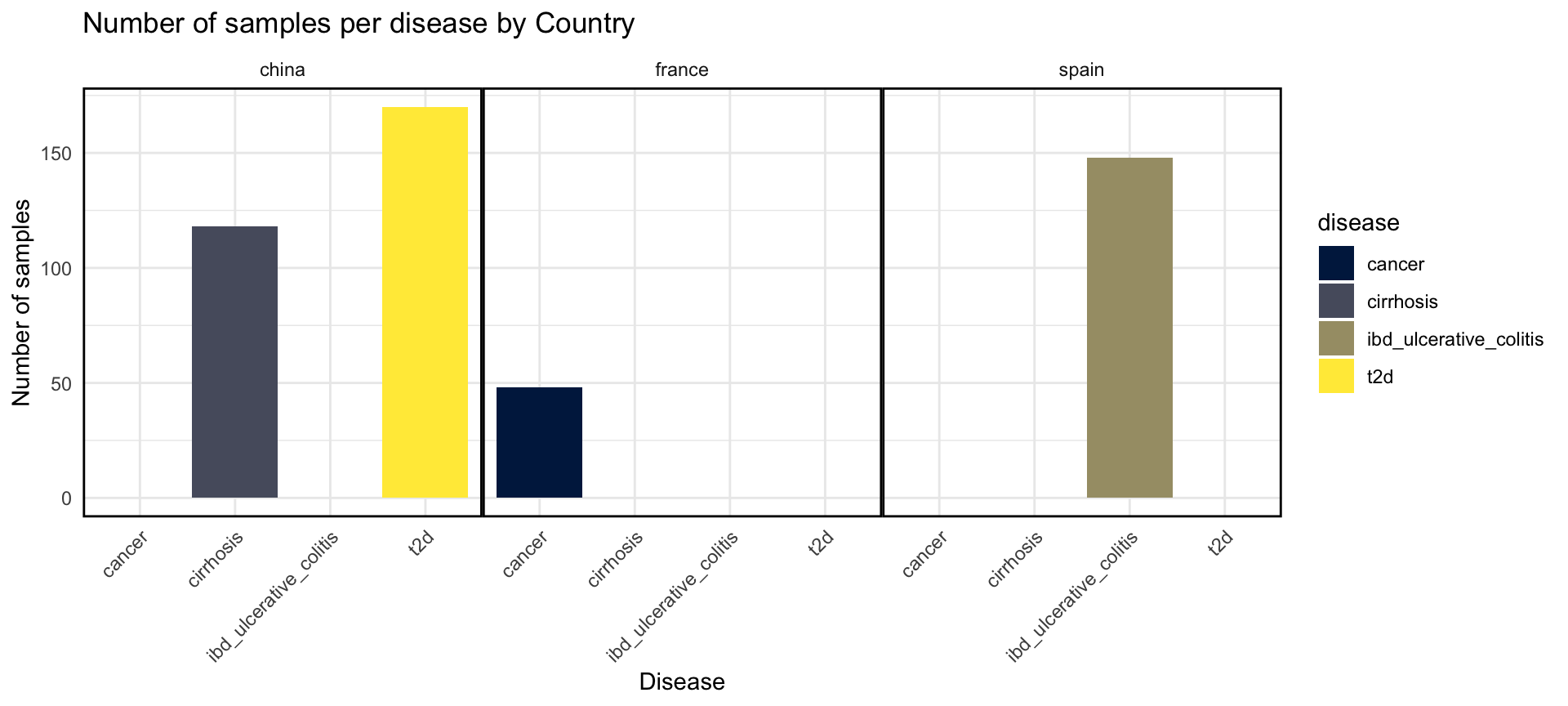

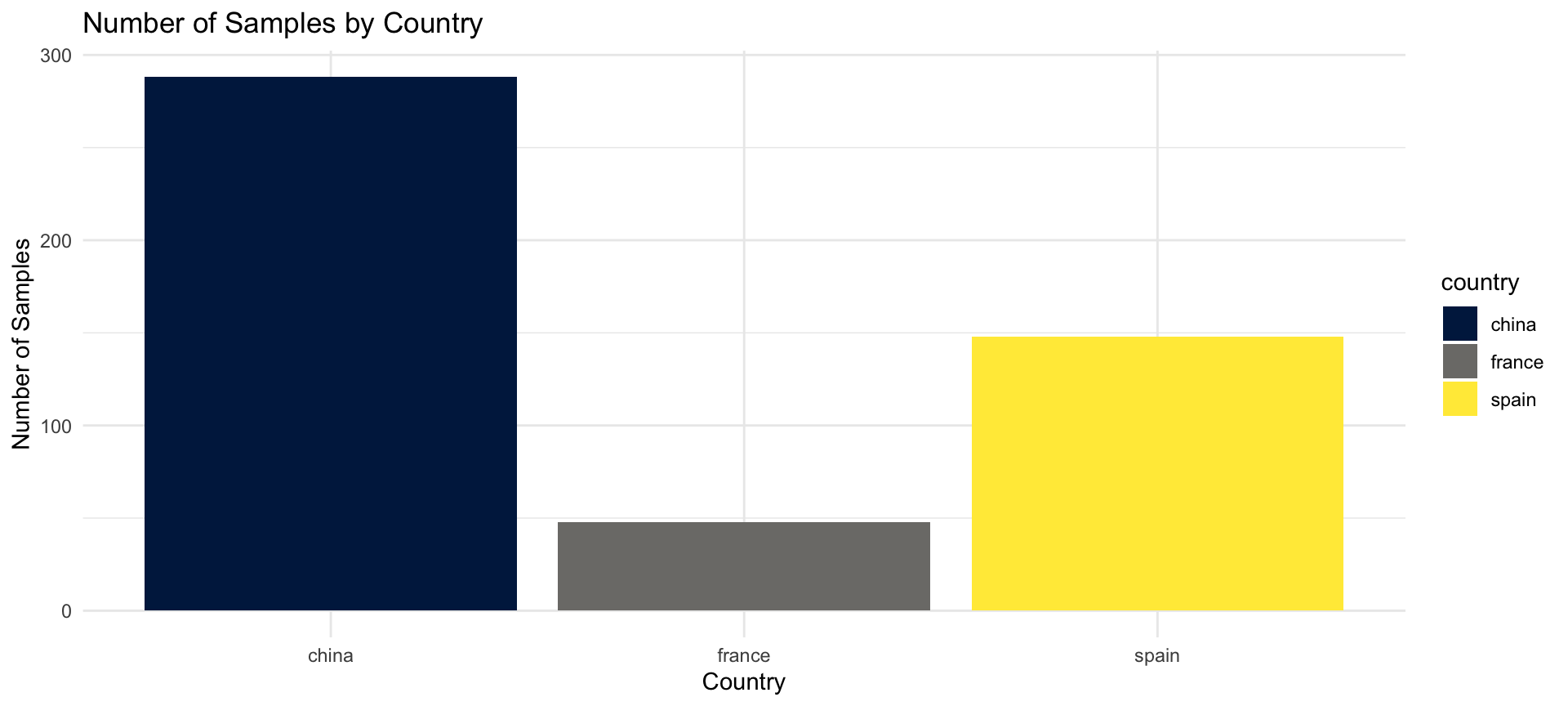

Sample distribution

2. Data Overview

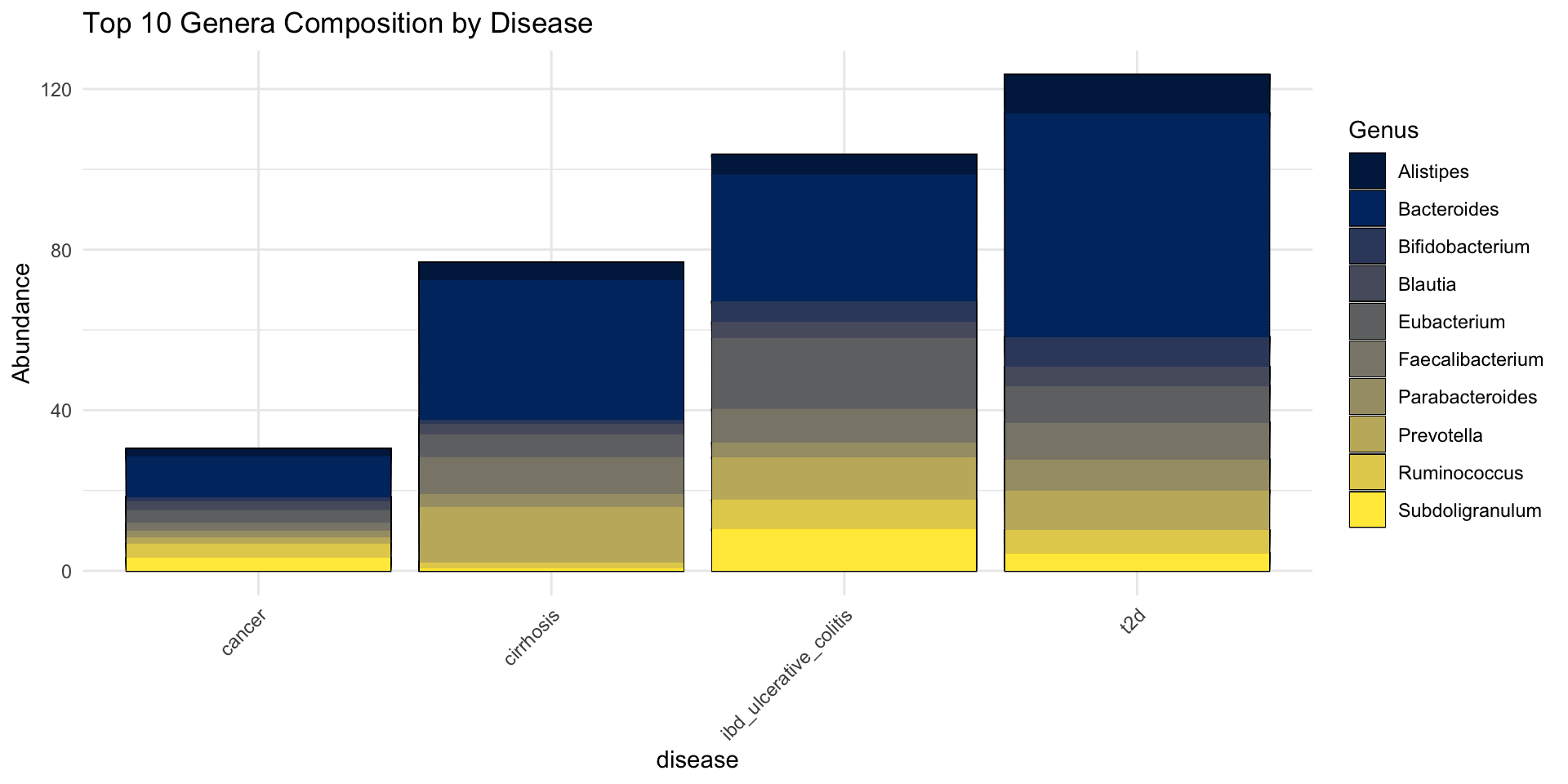

Taxonomic composition

➔ Roughly same microbial compositions, differing proportions, also depending on the nb of samples

Diversity analysis

1. Alpha diversity

Alpha diversity measures the diversity within a single sample. It can reflect both:

  • Richness: the number of taxa present
  • Evenness: the distribution of abundances among taxa

Several metrics can be used, we chose 4: Observed, Shannon, Simpson and Inverted Simpson

Overview of the Alpha diversity

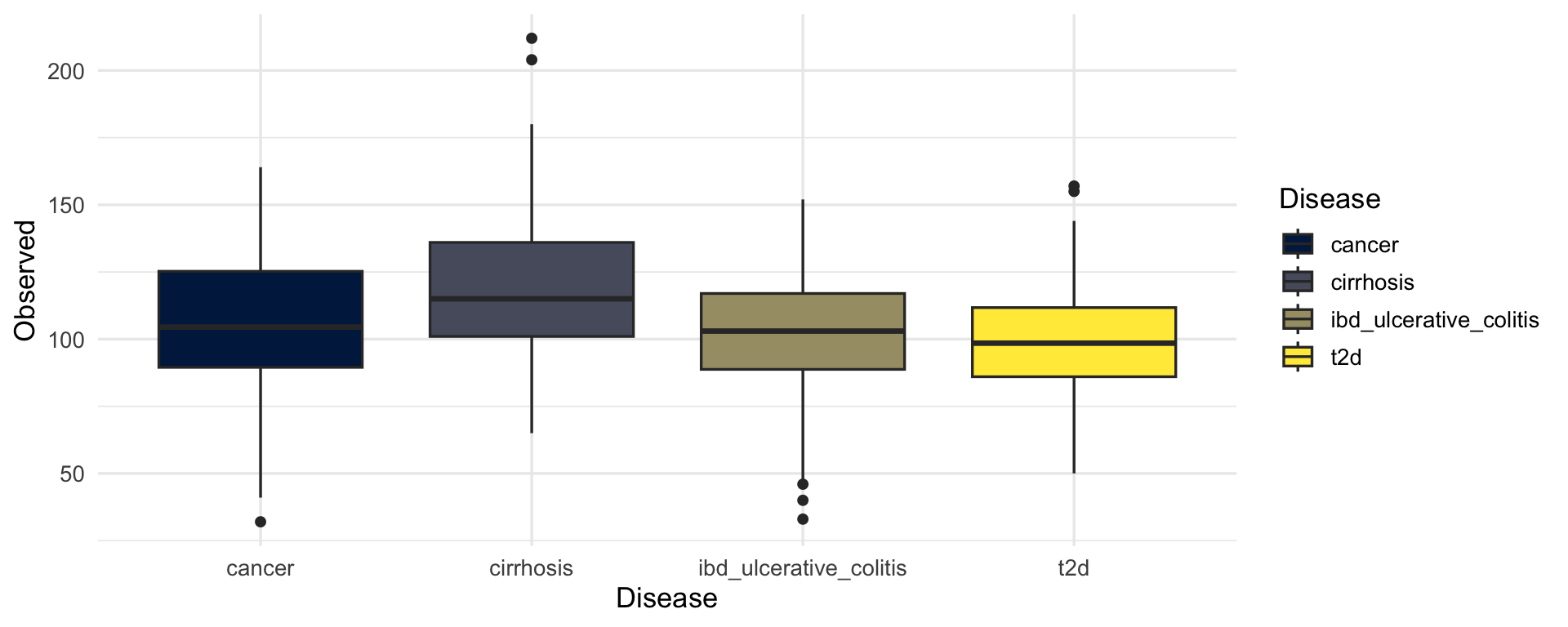

Unique OTUs present per diseases

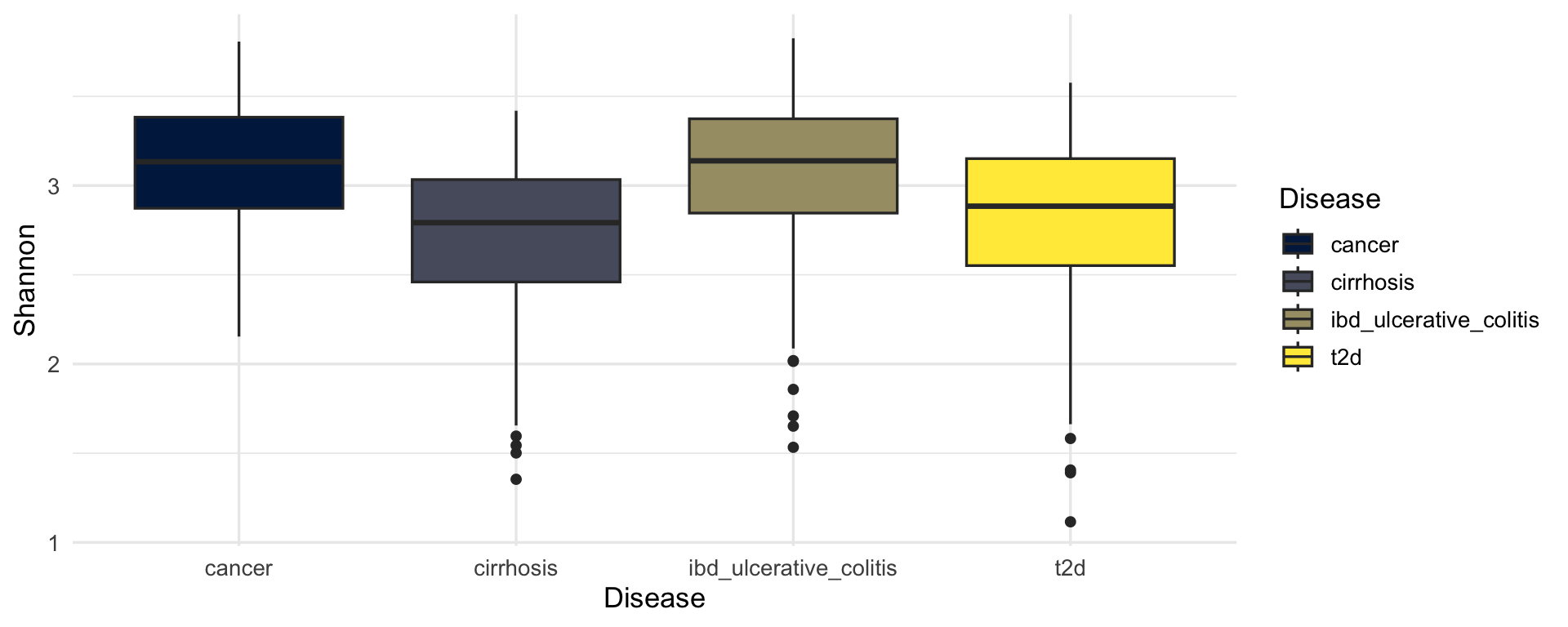

Measure the richness and evenness of species in a community

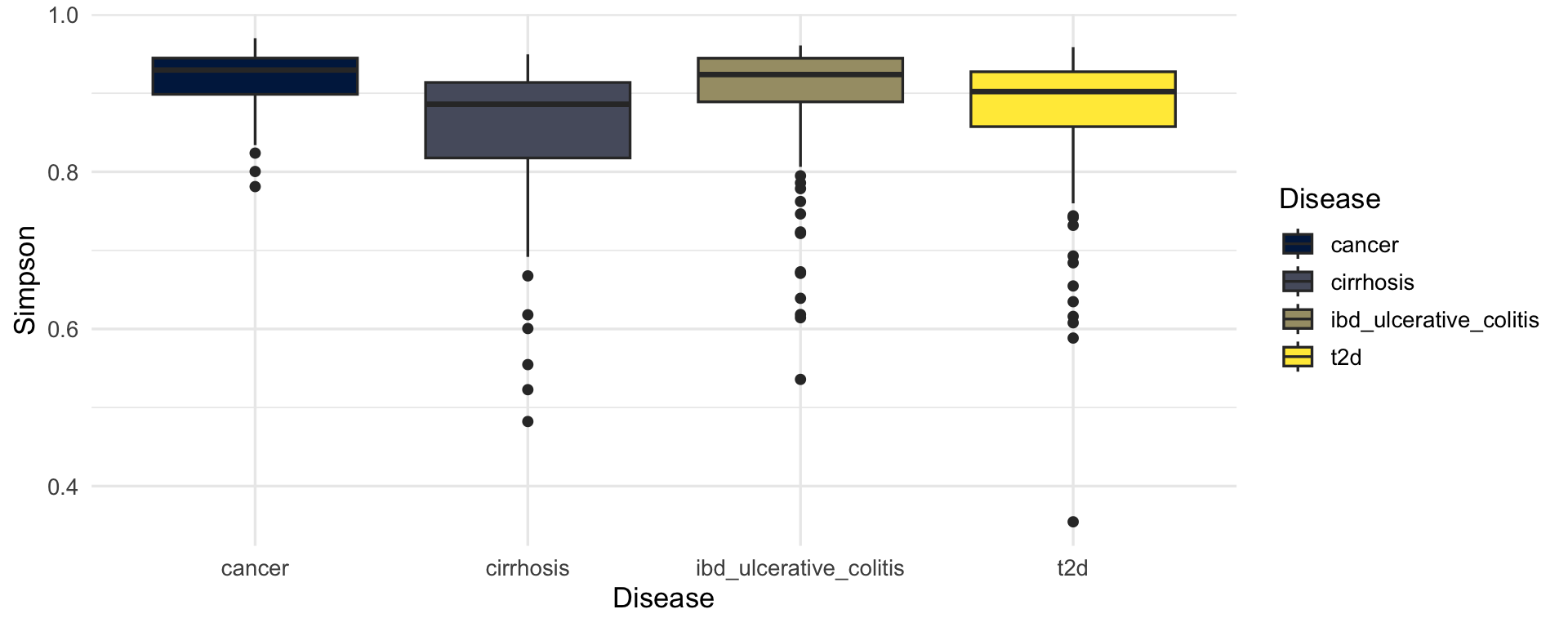

Probability : two random individuals from a community belong to the different species

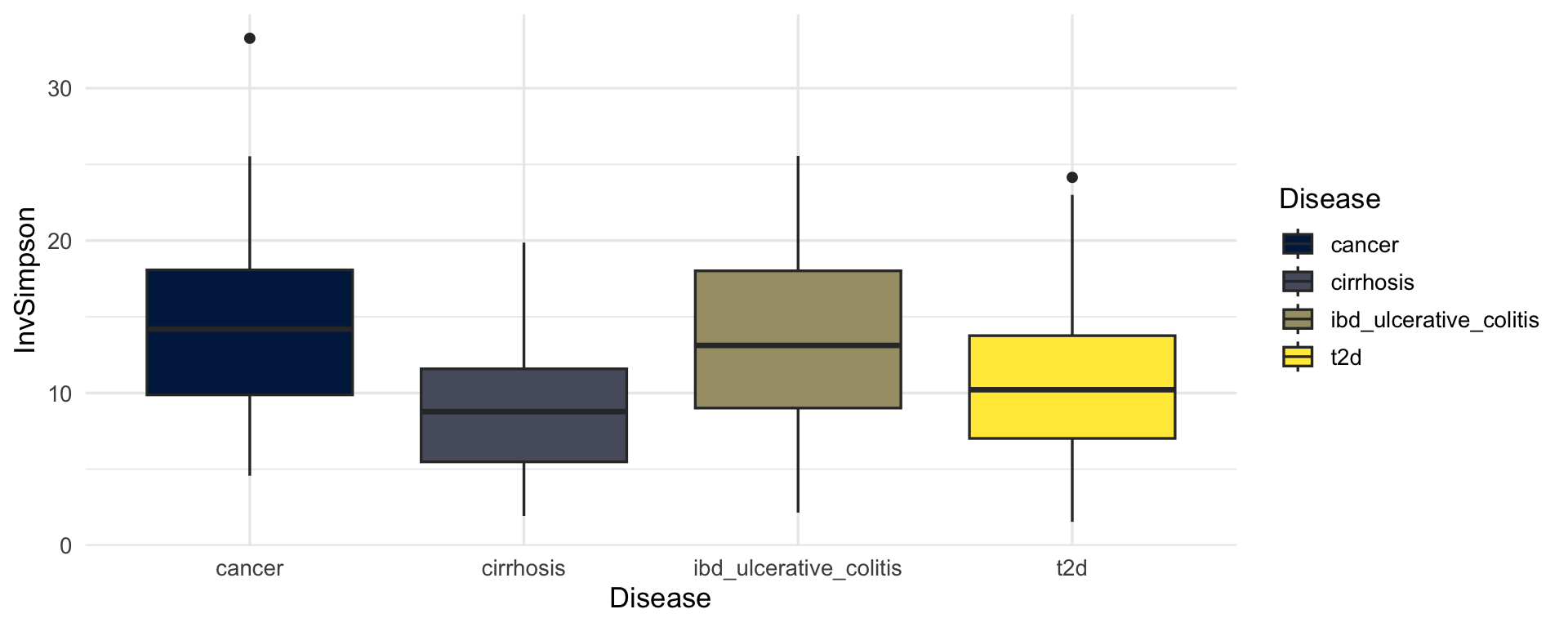

Variation of the Simpson = microbial interpretation of diversity in terms of equivalent species numbers

Statistical analysis

Assess the normality = Shapiro test

Metric method statistic p.value
Observed Shapiro-Wilk normality test 0.9867 2e-04
Shannon Shapiro-Wilk normality test 0.9491 0e+00
Simpson Shapiro-Wilk normality test 0.7580 0e+00
InvSimpson Shapiro-Wilk normality test 0.9773 0e+00

➔ p-value < 0.05 = reject the normality ➔ Non parametric test

Assess the significant differences in microbial diversity across disease groups = Kruskal-Wallis test

Metric method parameter statistic p.value
Observed Kruskal-Wallis rank sum test 3 48.6511 0
Shannon Kruskal-Wallis rank sum test 3 65.3548 0
Simpson Kruskal-Wallis rank sum test 3 57.5800 0
InvSimpson Kruskal-Wallis rank sum test 3 57.5800 0

➔ p-value < 0.05 = difference somewhere among the groups

KW = difference somewhere among the groups ➔ post-hoc pairwise comparisons to see which groups differ

Group A Group B P-value (BH) Metric
ibd_ulcerative_colitis cancer 0.8046 Simpson
ibd_ulcerative_colitis cancer 0.8046 InvSimpson
ibd_ulcerative_colitis cancer 0.6894 Shannon
ibd_ulcerative_colitis cancer 0.2792 Observed
t2d ibd_ulcerative_colitis 0.1583 Observed
t2d cancer 0.0742 Observed
t2d cirrhosis 0.0455 Shannon
cirrhosis cancer 0.0190 Observed
t2d cirrhosis 0.0107 Simpson
t2d cirrhosis 0.0107 InvSimpson
t2d cancer 0.0004 Simpson
t2d cancer 0.0004 InvSimpson
t2d cancer 0.0000 Shannon
t2d ibd_ulcerative_colitis 0.0000 Simpson
t2d ibd_ulcerative_colitis 0.0000 InvSimpson
cirrhosis cancer 0.0000 Simpson
cirrhosis cancer 0.0000 InvSimpson
ibd_ulcerative_colitis cirrhosis 0.0000 Observed
t2d ibd_ulcerative_colitis 0.0000 Shannon
cirrhosis cancer 0.0000 Shannon
ibd_ulcerative_colitis cirrhosis 0.0000 Simpson
ibd_ulcerative_colitis cirrhosis 0.0000 InvSimpson
ibd_ulcerative_colitis cirrhosis 0.0000 Shannon
t2d cirrhosis 0.0000 Observed
  • p-value < 0.05 = significative difference in diversity beetween the 2 communities
  • p-value > 0.05 = no significative difference

2. Beta diversity

Beta diversity measures differences in microbial composition between samples.

We used 2 metrics :

  • Bray-Curtis : Considers both the microbial communitites presence/absence and relative abundance beetween samples

  • Jaccard : Considers only presence/absence.

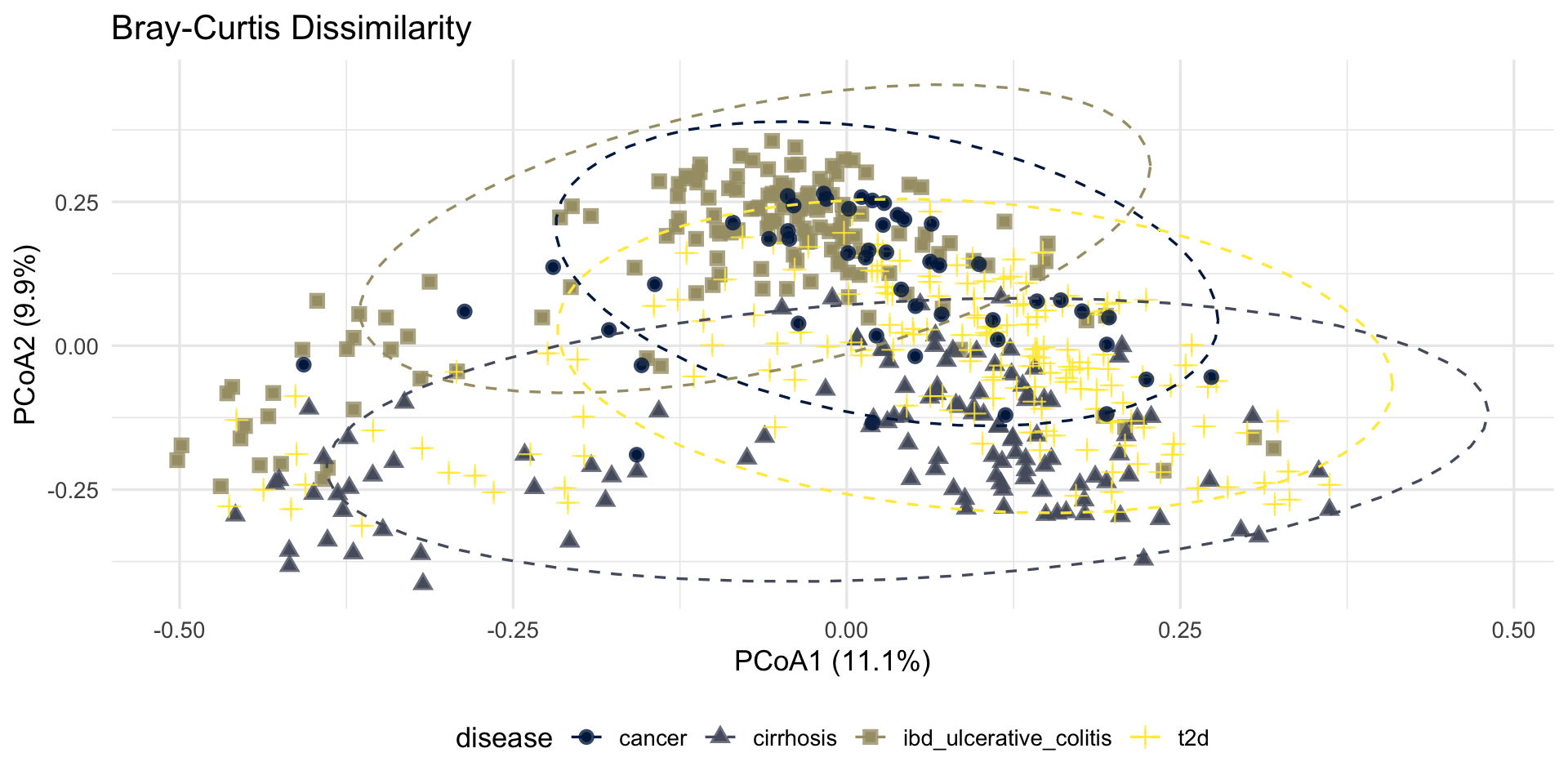

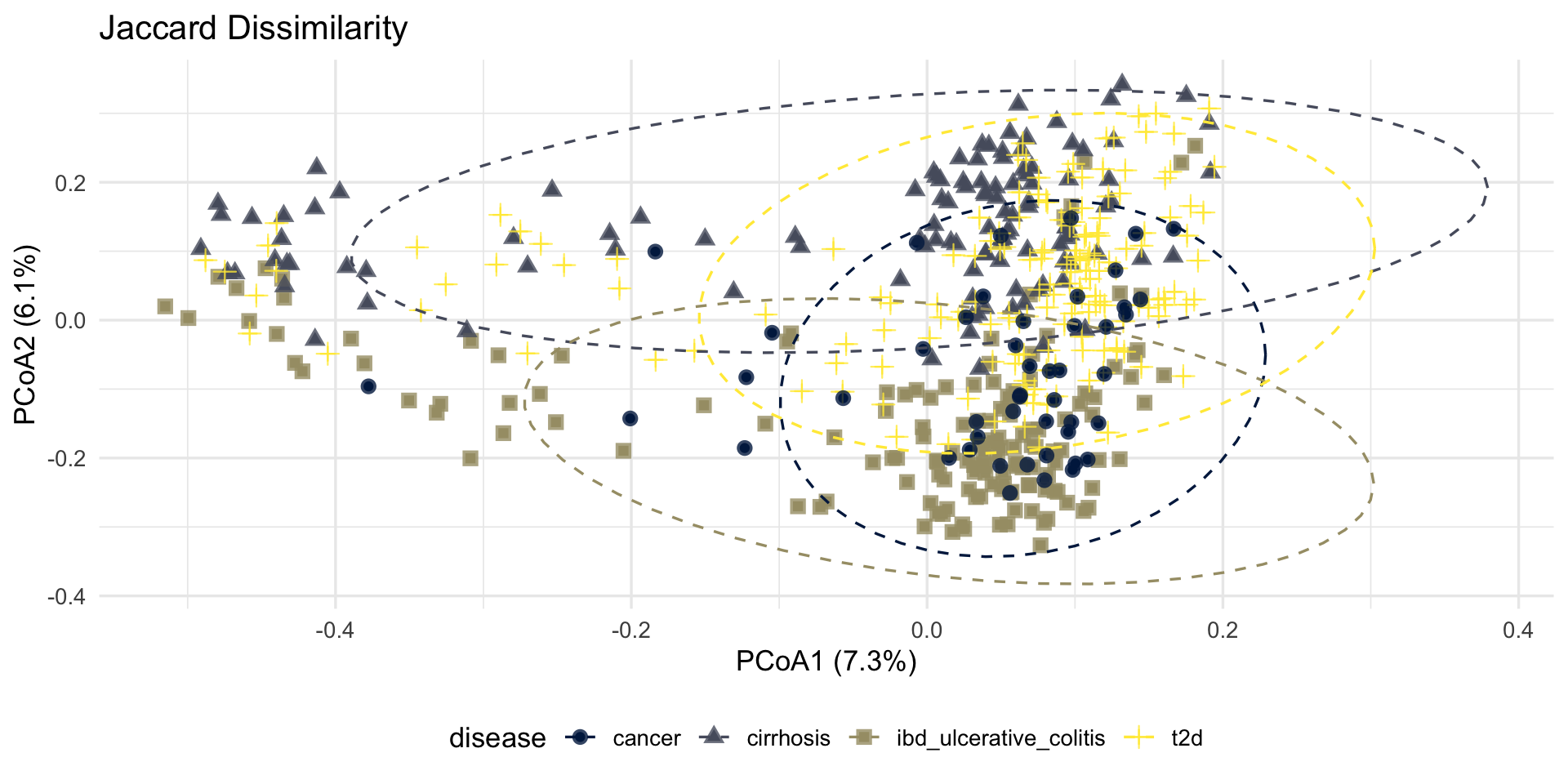

To visualise those dispersions, we used PCoA

2. Beta diversity

Statistical Analysis

Needed to verify the homogeneity of multivariate dispersions

Distance Metric F-value P-value (999 perms)
Bray-Curtis 18.158 0.001
Jaccard 18.513 0.001

➔ p-value < 0.05 = heterogeneity in the groups multivariate dispersion

Pairwise comparisons of multivariate dispersions (permutest.betadisper)
Comparison Observed diff. p-value Distance
cancer-cirrhosis 0.1871 0.199 Bray-Curtis
cancer-ibd_ulcerative_colitis 0.0136 0.012 Bray-Curtis
cancer-t2d 0.0309 0.026 Bray-Curtis
cirrhosis-ibd_ulcerative_colitis 0.0000 0.001 Bray-Curtis
cirrhosis-t2d 0.3025 0.303 Bray-Curtis
ibd_ulcerative_colitis-t2d 0.0000 0.001 Bray-Curtis
cancer-cirrhosis 0.2200 0.214 Jaccard
cancer-ibd_ulcerative_colitis 0.0148 0.014 Jaccard
cancer-t2d 0.0214 0.023 Jaccard
cirrhosis-ibd_ulcerative_colitis 0.0000 0.001 Jaccard
cirrhosis-t2d 0.1970 0.189 Jaccard
ibd_ulcerative_colitis-t2d 0.0000 0.001 Jaccard

➔ Pairwise comparisons revealed that the IBD group had significantly different multivariate dispersion compared to all other diseases (p < 0.05 for all comparisons)

Asses whether the centroids of the groups (disease status) are significantly different

Distance Metric Variation Explained (R² %) F-value P-value
Bray-Curtis 8.69 15.235 0.001
Jaccard 5.55 9.408 0.001

➔ p-value < 0.05 = Significant differences in community structure

➔ R2 Bray-Curtis > R2 Jaccard = abundance differences are more discriminative than just presence/absence

Pairwise PERMANOVA results (999 permutations)
Comparison R² F-value p-value Distance
ibd_ulcerative_colitis_vs_cirrhosis 0.1019 29.95 0.001 Bray-Curtis
ibd_ulcerative_colitis_vs_t2d 0.0631 21.27 0.001 Bray-Curtis
ibd_ulcerative_colitis_vs_cancer 0.0262 5.22 0.001 Bray-Curtis
cirrhosis_vs_t2d 0.0371 11.01 0.001 Bray-Curtis
cirrhosis_vs_cancer 0.0704 12.43 0.001 Bray-Curtis
t2d_vs_cancer 0.0286 6.35 0.001 Bray-Curtis
ibd_ulcerative_colitis_vs_cirrhosis 0.0626 17.63 0.001 Jaccard
ibd_ulcerative_colitis_vs_t2d 0.0401 13.22 0.001 Jaccard
ibd_ulcerative_colitis_vs_cancer 0.0180 3.55 0.001 Jaccard
cirrhosis_vs_t2d 0.0234 6.86 0.001 Jaccard
cirrhosis_vs_cancer 0.0444 7.62 0.001 Jaccard
t2d_vs_cancer 0.0192 4.22 0.001 Jaccard

Pairwise PERMANOVA revealed that all disease groups were significantly different from each other.

Metagenomic networks analysis

How microbial populations reorganize, compete, or cooperate depending on the host’s disease.

We used a consensus network approach :

  • SpiecEasi (MB): Meinshausen-Bühlmann Neighborhood Selection = Node to node interactions

  • SpiecEasi (Glasso): Graphical Lasso = Global estimation

  • SparCC: Sparse Correlations for Compositional Data = global correlations

An interaction is validated if confirmed by 2 of 3 methods

We tested 3 taxonomic levels : Phylum, Family and Genus

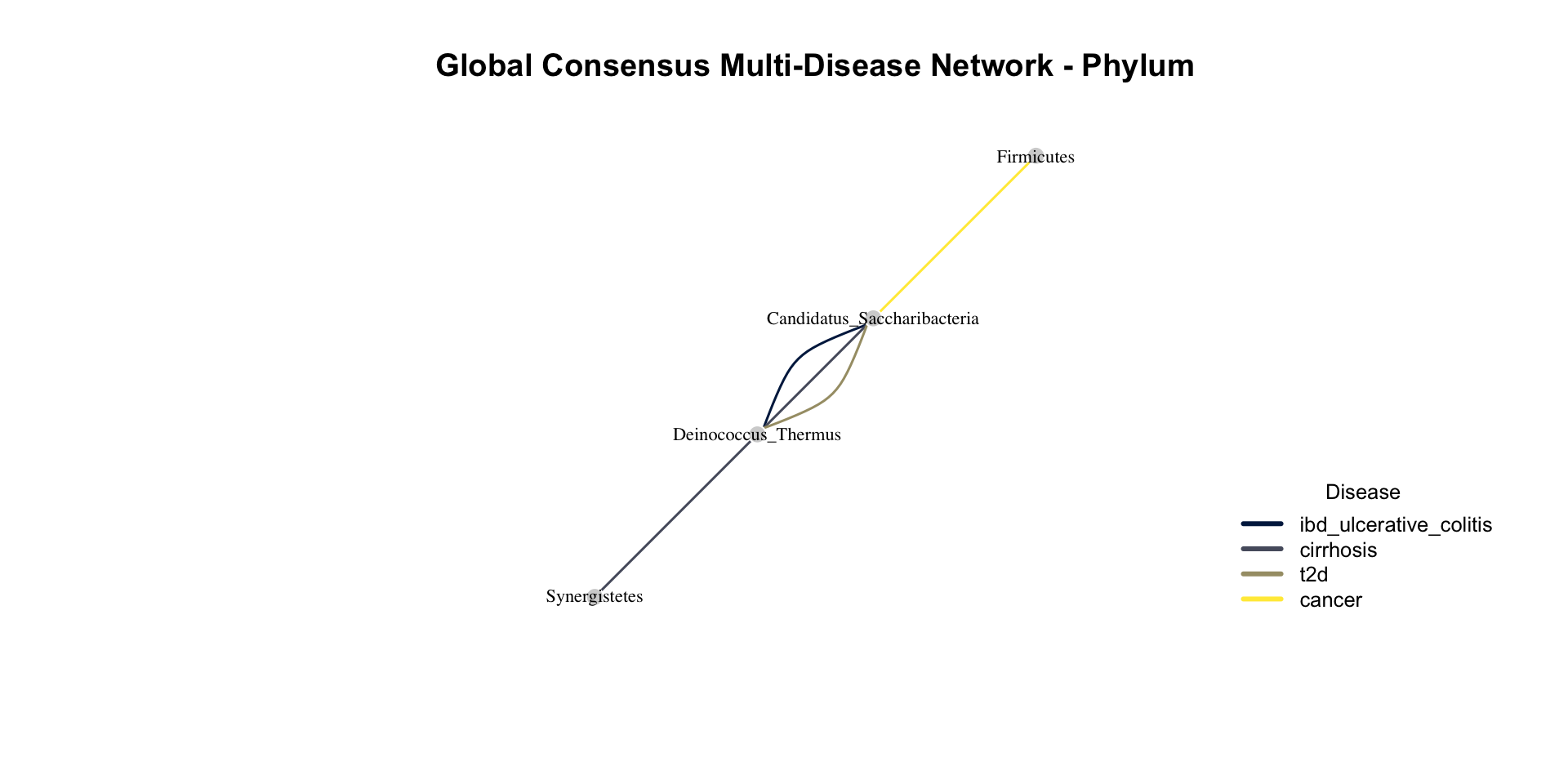

1. Phylum Level

Tax_Level Disease_Cohort Nodes_Count Edges_Count Graph_Density Average_Degree
Phylum ibd_ulcerative_colitis 8 1 0.036 0.25
Phylum cirrhosis 9 2 0.056 0.44
Phylum t2d 9 1 0.028 0.22
Phylum cancer 7 1 0.048 0.29
  • Low edge count (interactions)
  • Very low density

➔ grouping of populations, lack of resolution

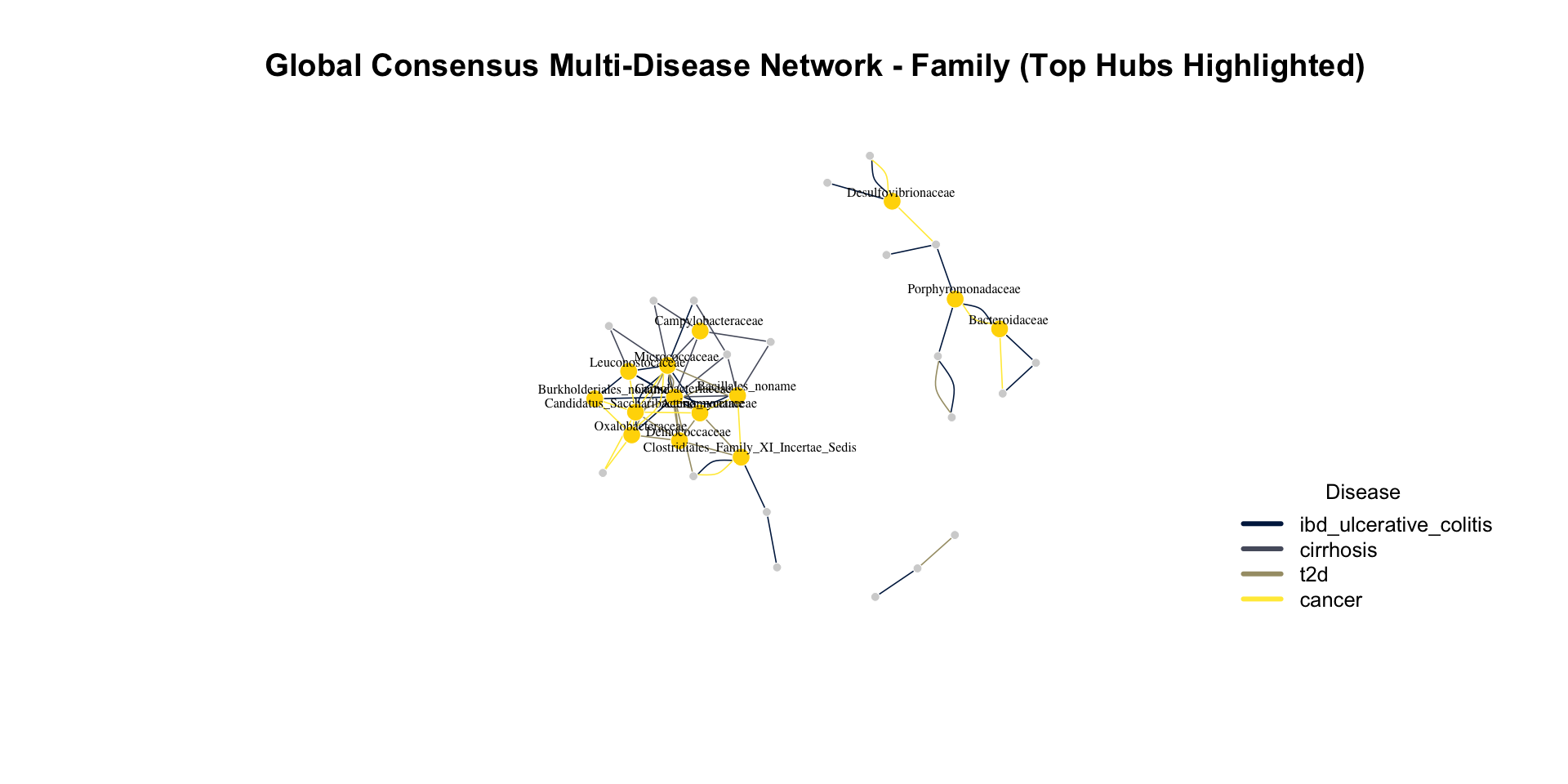

2. Family Level

Tax_Level Disease_Cohort Nodes_Count Edges_Count Graph_Density Average_Degree
Family ibd_ulcerative_colitis 34 24 0.043 1.41
Family cirrhosis 37 14 0.021 0.76
Family t2d 36 16 0.025 0.89
Family cancer 37 16 0.024 0.86
  • Increase in nodes and edges
  • Optimal graph density

➔ Network architecture = specific to each diseases

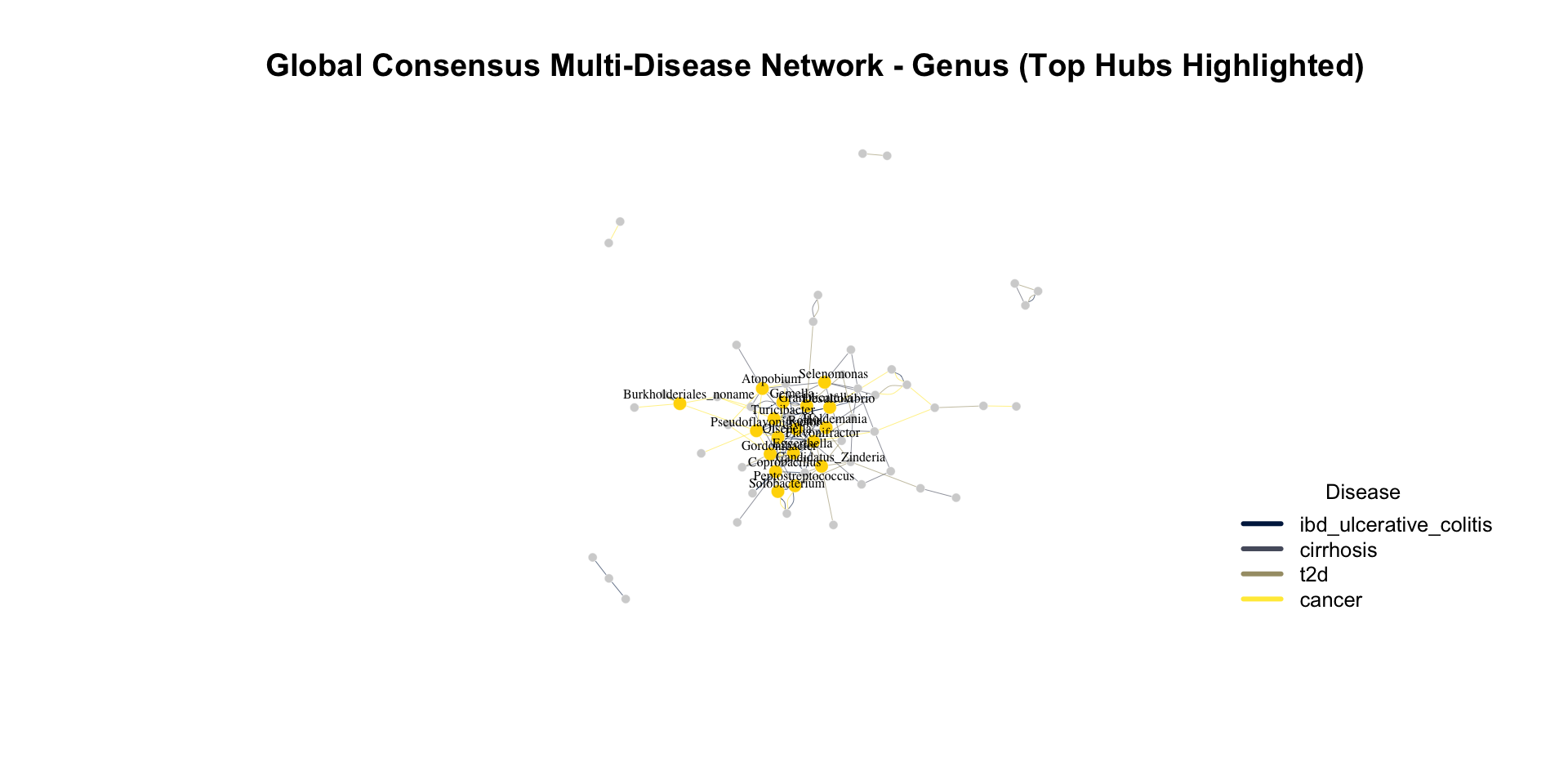

3. Genus Level

Tax_Level Disease_Cohort Nodes_Count Edges_Count Graph_Density Average_Degree
Genus ibd_ulcerative_colitis 64 46 0.023 1.44
Genus cirrhosis 70 30 0.012 0.86
Genus t2d 64 33 0.016 1.03
Genus cancer 73 29 0.011 0.79
  • Too much nodes and edges
  • Decreasing density

➔ Topological collapse = a lot of fragmentation

Conclusion: A Robust Bioinformatics Pipeline

  • End-to-End Reproducibility: Seamless integration of metadata, taxonomy, and OTU counts within the phyloseq framework.
  • Statistical Rigor: Addressed inherent metagenomic biases (sparsity, zero-inflation, compositionality) via Centered Log-Ratio (CLR) transformations and non-parametric testing.
  • Consensus Network Inference: Mitigated algorithmic artifacts and false positives by enforcing a strict majority vote across three distinct methodologies (SPIEC-EASI MB, SPIEC-EASI Glasso, and SparCC).
  • Scalable Architecture: Delivered a fully automated, version-controlled analytical environment using R, igraph, and Quarto.

THANK YOU FOR YOUR ATTENTION !
